Home Discontinued NheI

NheI

This product has been discontinued and is replaced with the High-Fidelity version, NheI-HF (NEB #R3131)

Catalog # R0131 was discontinued on March 17, 2021

NEB restriction endonuclease that recognizes the sequence G^CTAG_C

Isoschizomers | Single Letter Code | Pronunciation:

Time-Saver™ qualified for digestion in 5-15 minutes

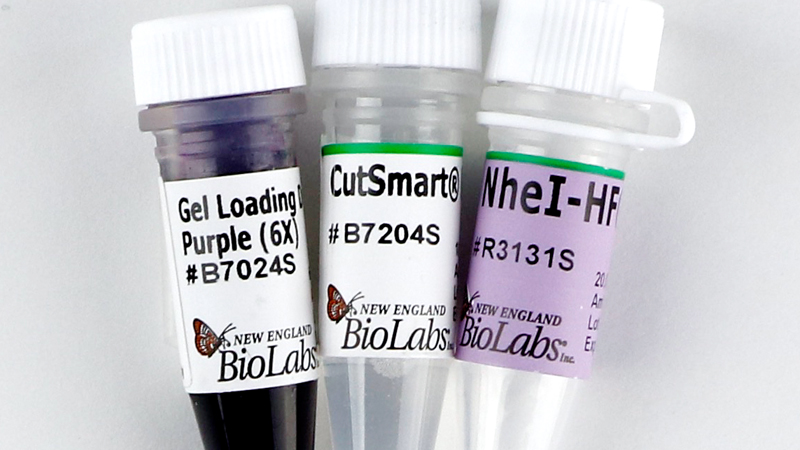

High Fidelity (HF^®) version available (NEB #R3131) supplied with CutSmart^® Buffer
Supplied with 1 vial of Gel Loading Dye, Purple (6X)
Cut Site: G/CTAGC

Product Information
NheI has a High Fidelity version NheI-HF® (NEB #R3131).

High Fidelity (HF) Restriction Enzymes have 100% activity in CutSmart Buffer; single-buffer simplicity means more straightforward and streamlined sample processing. HF enzymes also exhibit dramatically reduced star activity. HF enzymes are all Time-Saver qualified and can therefore cut substrate DNA in 5-15 minutes with the flexibility to digest overnight without degradation to DNA. Engineered with performance in mind, HF restriction enzymes are fully active under a broader range of conditions, minimizing off-target products, while offering flexibility in experimental design.
Product Source
An E. coli strain that carries the NheI gene from Neisseria mucosa heidelbergensis (ATCC 25999).

This product is related to the following categories:

Discontinued (<3 years)
- Properties & Usage
  Unit Definition
  One unit is defined as the amount of enzyme required to digest 1 µg of λ DNA (HindIII digest) in 1 hour at 37°C in a total reaction volume of 50 µl.
  Reaction Conditions

  1X NEBuffer™ 2.1
  Incubate at 37°C

  1X NEBuffer™ 2.1
  50 mM NaCl
  10 mM Tris-HCl
  10 mM MgCl₂
  100 µg/ml BSA
  (pH 7.9 @ 25°C)

  Activity in NEBuffers
  NEBuffer™ 1.1: 100%
  NEBuffer™ 2.1: 100%
  NEBuffer™ 3.1: 10%

  Diluent Compatibility

  Diluent C

  Storage Buffer

  10 mM Tris-HCl
  250 mM NaCl
  1 mM DTT
  0.1 mM EDTA
  200 µg/ml BSA
  50% Glycerol
  0.15% Triton® X-100
  pH 7.4 @ 25°C

  Heat Inactivation
  65°C for 20 minutes
  Methylation Sensitivity

  dam methylation: Not Sensitive
  dcm methylation: Not Sensitive
  CpG Methylation: Blocked by Some Combinations of Overlapping
- Related Products
  Companion Products

  NheI-HF®

  Nuclease-free Water

  Materials Sold Separately

  Gel Loading Dye, Purple (6X)

  NEBuffer 2.1
- Product Notes
  Cleaves to leave a 5´ CTAG extension which can be efficiently ligated to DNA fragments generated by AvrII, SpeI or XbaI.

  Inhibited by salt concentrations > 100 mM.

  This enzyme has shown to have lower activity on some supercoiled plasmids, with more than 1 unit required to digest 1 μg plasmid DNA. For complete digestion of 1 μg of plasmid DNA please follow our recommended digestion protocol.

  Blocked by some combinations of overlapping CpG methylation.
