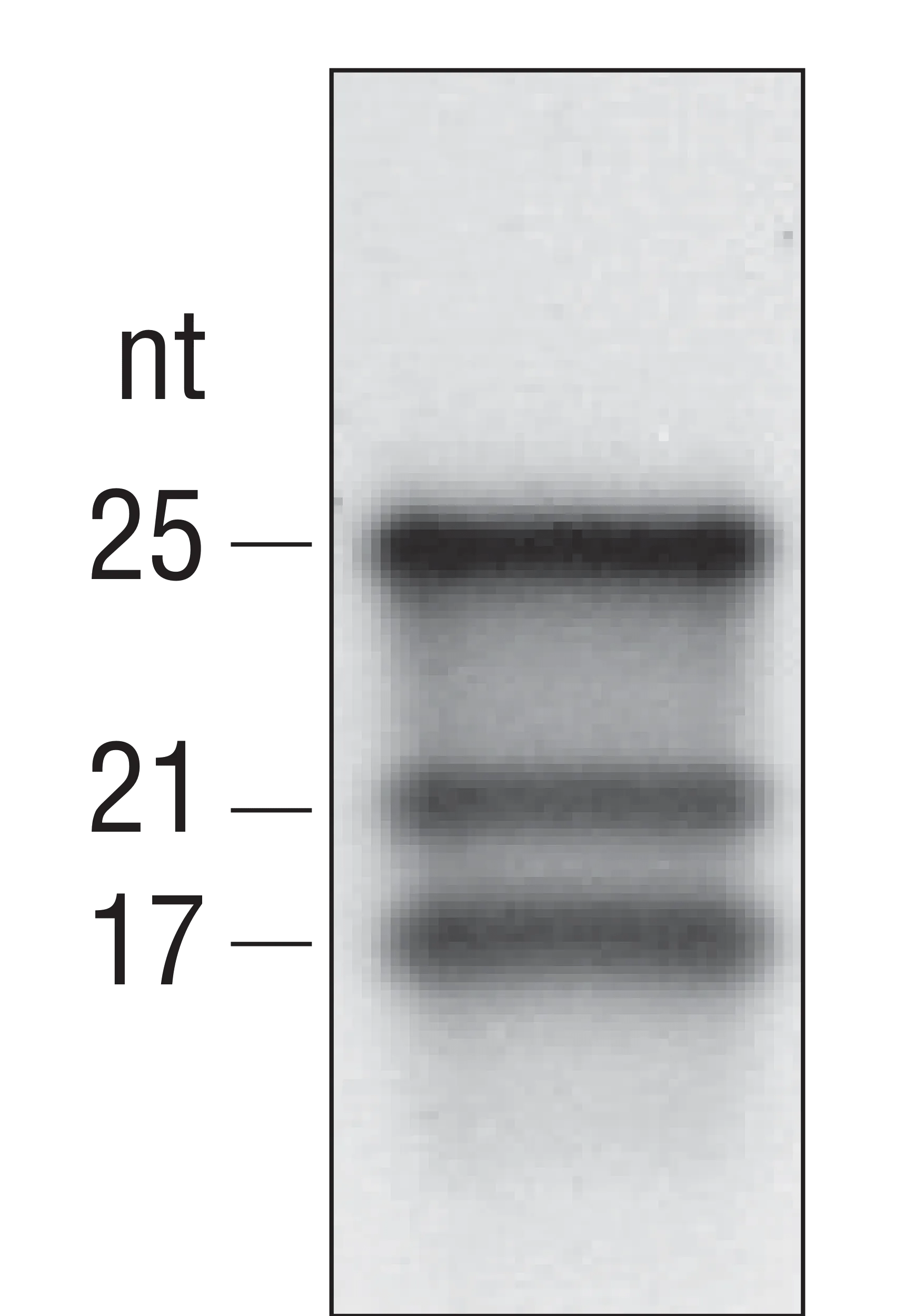

microRNA Marker

The following reagents are supplied with this product:

NEB #	Component Name	Component #	Stored at (°C)	Amount	Concentration
N2102S     -20       microRNA Marker N2102SVIAL -20 1 x 0.5 ml 12 ng/µl   MicroRNA Marker Probe (21-mer) S1328SVIAL -20 1 x 0.5 ml 20 ng/µl

Companion Products

• Low Range ssRNA Ladder
• T4 Polynucleotide Kinase

1. The microRNA Marker is provided in a ready-to-load denaturing solution. Denature by heating for 3-5 minutes at 95°C and place on ice. Load 5-10 µl for staining with SYBR Gold in denaturing gels. In Northern blots, less than 1 µl (12 ng) is sufficient for detection by hybridization.

   The Orange G loading buffer migrates faster than the smallest band, and migrates approximately as far as the nucleotides.
2. Oligonucleotide Probe Usage: The provided biotinylated probe DNA oligonucleotide can be labeled with T4 Polynucleotide Kinase (NEB #M0201) and radioactive γ-³²P-ATP using the following protocol:

   1. Mix the following components in a sterile microfuge tube:

      Oligonucleotide Probe -- 1-5 µl
      10X T4 Polynucleotide Kinase reaction Buffer -- 2.0 µl
      γ-³²P-ATP (5 µCi/µl) -- 1-2 µl
      T4 Polynuclotide Kinase -- 1 µl
      Sterile dH₂0 -- X µl
      Total volume -- 20 µl

   2. Incubate for 30 minutes at 37°C.

   3. Purify labeled probe using a G-25 spin column.

1. Sambrook, J. and Russel, D.W. (2001). Molecular Cloning: A Laboratory Manual (3rd Ed.). 7.1-7.56.

1. Can I use the microRNA Marker on a non-denaturing gel?
2. Should I denature the microRNA Marker before loading on my gel?
3. What is the difference between the siRNA marker and the microRNA marker (discontinued)
4. Can I use EtBr for staining the microRNA Marker after gel electrophoresis?
5. Should I load more of the microRNA Marker so I can get better visibility of the bands after staining the gel with EtBr?
