NEBNext® Fast DNA Fragmentation & Library Prep Set for Ion Torrent™
This product was discontinued on December 15, 2025. An alternative product is the NEBNext® Fast DNA Library Prep Set for Ion Torrent™ (NEB #E6270L) or the NEBNext dsDNA Fragmentase® (NEB #M0348S).
Catalog # E6285 was discontinued on December 15, 2025
The NEBNext® Fast DNA Fragmentation & Library Prep Set for Ion Torrent® includes enzymatic DNA fragmentation in a streamlined, high-performance library prep workflow.
High yield
Fast, simple workflow – under 2 hours, with minimal hands-on time
Compatible with broad range of sample input (10 ng –1 μg)
The NEBNext® Fast DNA Fragmentation & Library Prep Set for Ion Torrent® includes a master mix of reagents for enzymatic DNA fragmentation combined with end repair. This enables efficient and tunable DNA shearing and blunting with minimized sample loss before performing adaptor ligation and high-fidelity library amplification. The kit is compatible with input amounts from 10 ng - 1µg, with a workflow time of under 2 hours and ~12 min. hands-on time.
Adaptors and primers for singleplex libraries are supplied in the kits. For multiplexed libraries, the Ion Xpress™ Barcode Adapters from Thermo Fisher Scientific can be used.
If mechanical shearing of DNA is preferred, a version of the kit without enzymatic fragmentation reagents is available.

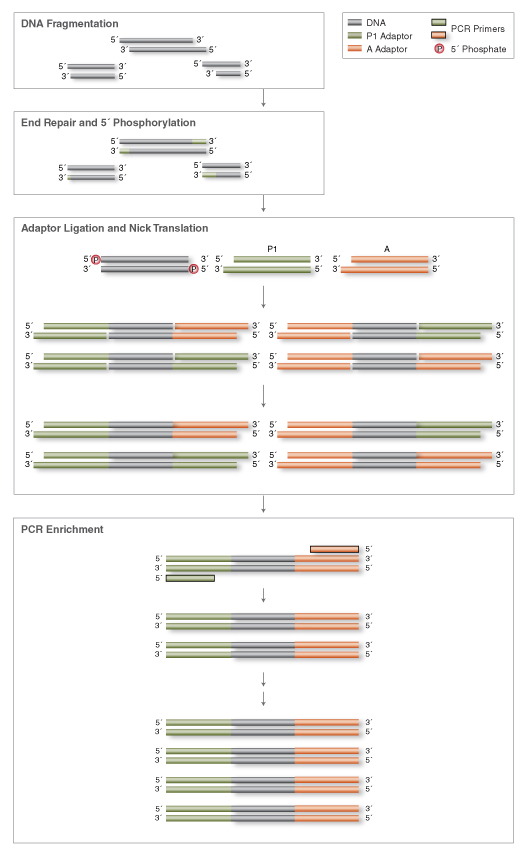

DNA Library Preparation Workflow for Ion Torrent

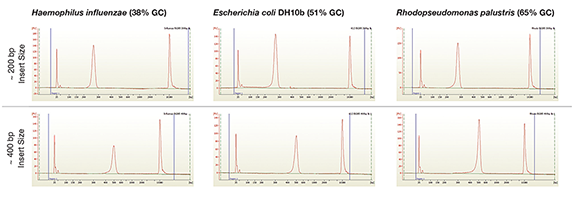

Representative Results from Libraries Constructed Using NEBNext for Ion Torrent
0.5 µg of DNA from 3 different genomes with varying GC content were used to construct 200 bp and 400 bp libraries using the NEBNext Fast DNA Fragmentation and Library Prep Set for Ion Torrent, analyzed by the Agilent® Bioanalyzer®.
Representative Ion Torrent Run Report
A typical Ion Torrent run report for libraries made from E. coli (K12 MG1655 strain) genomic DNA using NEBNext Fast DNA Fragmentation & Library Prep Set for Ion Torrent. A. Alignment Summary. 72 Mb of data was generated, with an average genome coverage of 15.5 X, from approximately 0.5 Million 200 bp reads. B. Read length histogram from 200 bp run.
Figure 1: Relative size distribution of Fragmented End Repaired DNA as seen using the Bioanalyzer® 2100 (Agilent Technologies, Inc.).
1 µg of E. coli DNA was fragmented and end repaired for 20 minutes at 25°C, followed by 10 minutes at 70°C.
Figure 2: Final Library size distribution using AMPure XP Bead Size Selection.
Figure 3: Final Library Size distribution using E-Gel Size Selection.
Lot Control
The lots provided are managed separately and qualified by additional functional validation. Individual reagents undergo standard enzyme activity and quality control assays, and also meet stringent criteria in the additional quality controls listed on each individual component page
This product is related to the following categories:
Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.
Specifications & Change Notifications
The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]
The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]
Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.
This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
New England Biolabs (NEB) is committed to practicing ethical science – we believe it is our job as researchers to ask the important questions that when answered will help preserve our quality of life and the world that we live in. However, this research should always be done in safe and ethical manner. Learn more.
Licenses
This product is covered by one or more patents.
This product is licensed for research and commercial use from Bio-Rad Laboratories, Inc., under U.S. Pat. Nos. 6,627,424, 7,541,170, 7,670,808, 7,666,645, and corresponding patents in other countries. No rights are granted for use of the product for Digital PCR or real-time PCR applications, with the exception of quantification in Next Generation Sequencing workflows.
Nucleic acid-based aptamers for use with thermophilic DNA polymerases are licensed exclusively by New England Biolabs, Inc. from SomaLogic, Inc. New England Biolabs, Inc. gives the Buyer/User a non-exclusive license to use the NEBNext® Fast DNA Fragmentation & Library Prep Set for Ion Torrent™ for Research Use Only (RUO). Commercial use of this product may require a license from New England Biolabs, Inc. For additional information or to inquire about commercial use, please contact busdev@neb.com.
Trademarks
NEBNEXT®, NEW ENGLAND BIOLABS®, WARMSTART® and Q5® are registered trademarks of New England Biolabs, Inc. LITMUS™ and THERMOPOL™ are trademarks of New England Biolabs, Inc.
AMPURE® is a registered trademark of Beckman Coulter, Inc. BIOANALYZER® is a registered trademark of Agilent Technolgies, Inc. ION XPRESS™ and ION TORRENT™ are trademarks owned by Life Technologies, Inc.
