Improving Enzymatic DNA Fragmentation for Next Generation Sequencing Library Construction

Introduction

The Human Genome Project (HGP), which was officially completed in 2003, was considered to be one of the world’s largest collaborative projects of its time (1). This involved many research groups worldwide and had the lofty goal of deciphering all 3 billion bases of the human genome. The project cost almost $4 billion dollars and took 13 years to complete with the available technology. Over a decade later, advancements in next generation sequencing (NGS) technologies have enabled sequencing of a human genome to become routine, taking less than two days, and at a tiny fraction of the cost of the original HGP.

The ability to quickly and inexpensively sequence whole genomes has truly revolutionized genomics research. Where once single genes or families of genes were studied, now whole genomes, exomes, transcriptomes and epigenomes are interrogated. With recent advances, such as the ability to multiplex and sequence many samples at once, NGS has transitioned from a basic research tool into the clinic, where it impacts discovery, diagnostics and treatment of disease.

Advances in genomics driven by NGS, as well as advances in the technology itself, continue at an amazing pace and move us closer to the realization of personalized medicine, where clinical decisions are tailored to an individual’s genome. However, if this pace is to continue, advances in all aspects of the technology must also continue. This includes early steps of the sequencing workflow, specifically in the preparation of samples, before they are sequenced.

To date, there are no sequencing platforms that can sequence intact DNA. Therefore, prior to sequencing, DNA molecules must be fragmented, or broken, into smaller pieces. These DNA fragments are then converted into libraries, by different methods depending on the sequencing platform to be used (Figure 1). In all cases, the libraries generated consist of the fragments of the unknown DNA to be sequenced, flanked by pieces of known DNA (adaptors), which are specific to each sequencing platform.

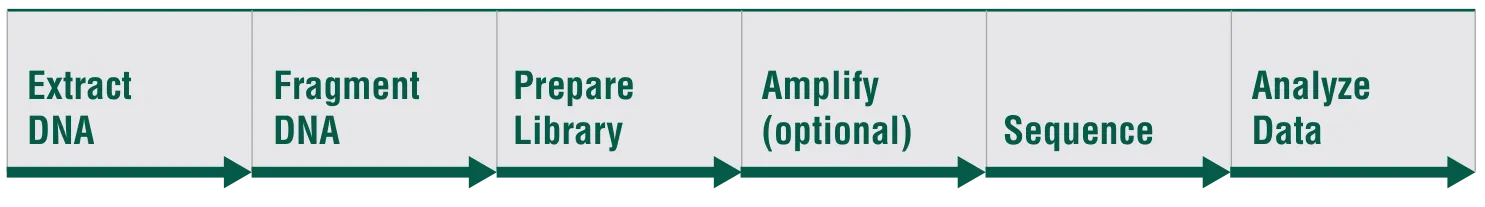

Figure 1: Traditional library preparation workflow

DNA Fragmentation Approaches

One of the major bottlenecks to sample prep is the first step: DNA fragmentation. The size of the DNA fragments generated depend on the sequencing platform being used, and can range from several hundred base pairs for short read sequencing technologies (e.g., Illumina®, Ion Torrent™) to >10 kb pieces for long read sequencing technologies (e.g., Pacific Biosciences® and Oxford Nanopore Technologies®). Methods for fragmenting DNA are broadly split into two basic categories: mechanical and enzyme-based. Mechanical shearing methods include acoustic shearing, hydrodynamic shearing and nebulization, while enzyme-based methods include transposons, restriction enzymes and nicking enzymes. Although many different options exist to fragment DNA, final fragment size, amount of starting material, upfront capital investment, and scalability must be considered when choosing a fragmentation method. Critically, in order to be useful for NGS, the method used must shear the DNA sufficiently randomly, so that the library being sequenced is fully representative of the original sample.

Mechanical Shearing

Options for mechanical fragmentation of DNA range from small plastic nebulizer devices to sophisticated electronic instruments. The most commonly used technique utilizes focused acoustic shearing devices, such as the instruments made by Covaris®. This involves focused transmission of high-frequency, short wavelength acoustic energy on the DNA sample. The size of the DNA fragments generated (150 – 5,000 bp) is controlled by changing both the intensity and the duration of the acoustic waves, and the protocols used are the same regardless of the amount or GC content of the DNA. Cost, challenges of scalability and sample loss (often caused by sample transfer after shearing), are some of the reasons that users of this method seek alternatives, especially as throughput increases.

If larger DNA fragments are required, hydrodynamic shearing can be used. In this method, hydrodynamic shear forces are applied by pushing DNA through the small orifice of a syringe. Size is controlled by altering the speed at which the DNA is pushed through the syringe. Centrifugation can also be used to create hydrodynamic force, by pulling the DNA sample through a hole with a defined size. Here, the rate of centrifugation determines the degree of DNA fragmentation. DNA fragments generated with hydrodynamic shear forces are typically in the range of 1-75 kb, but require large DNA input amounts (> 1 µg) and throughput is low. Nebulization is another method used to mechanically fragment DNA. Nebulization uses compressed air to force DNA through a small hole in a nebulizer unit and DNA fragment size is determined by the pressure used. Although this method is inexpensive and fragment size is somewhat tunable (typically 700 – 5000 bp in size), microgram quantities of DNA are required for starting material, and the method is most suitable for small numbers of samples.

Enzymatic Fragmentation

Enzyme-based fragmentation of DNA is an attractive alternative to mechanical shearing methods, as it does not require upfront capital expense, is amenable to quickly processing many samples at the same time, and reduces sample loss. Historically, the main concern with this method has been sequence bias, as many enzymes that cleave DNA have recognition sequences or sequence preferences.

Transposases fragment DNA by cleaving and inserting a short double-stranded oligonucleotide to the ends of the newly cleaved molecule. The inserted oligonucleotide must contain a sequence that is specific to the particular transposase being used. While this method is fast and has low input requirements, the known sequence bias associated with transposases make them incompatible with some applications.

Improving DNA Fragmentation for NGS Library Construction

To address the challenges associated with existing fragmentation approaches, NEB has developed a fragmentation system, the NEBNext® Ultra™ II FS DNA Library Prep Kit (NEB #E7805, E6177), in which a unique enzymatic fragmentation reagent is fully integrated into library preparation to generate low bias, high quality NGS libraries, with a simple, scalable workflow (for more information see page 6).

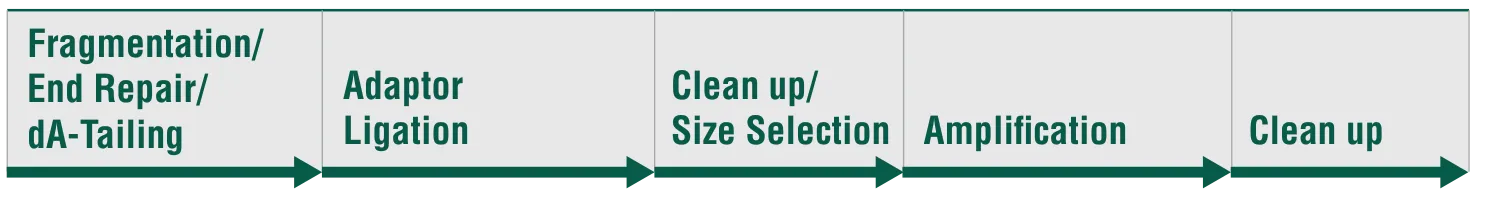

In order to reduce the NGS sample prep bottleneck, improvements in both performance and ease of use were necessary. In this work, we have focused on the DNA fragmentation step. Our new DNA fragmentation reagent is combined with end repair and dA-tailing reagents, and subsequent adaptor ligation is also carried out in the same vial (Figure 2). For low input samples, PCR amplification is performed prior to sequencing.

Figure 2: NEBNext Ultra II FS Kit workflow

Performance

Increased Library Yields

The use of enzymatic fragmentation can result in higher library yields as compared to mechanical shearing workflows, as the latter results in sample loss and DNA damage. Achieving sufficient library yields for high quality sequencing from very low input amounts can be especially challenging with mechanical shearing of DNA, a situation compounded by the preference to amplify libraries using as few PCR cycles as possible. Integration of our unique fragmentation reagent with end repair and dA-tailing, removing sample cleanup prior to ligation and eliminating multiple transfer steps all help to minimize sample loss. When combined with the high reaction efficiences of each step in the workflow and lack of DNA damage cuased by mechanical shearing, NEBNext Ultra II FS generates higher yields than library preparation using mechanical shearing methods. High library yields can be achieved with input amounts as low as 100 pg of human genomic DNA with amplification, or as low as 50 ng for PCR-free workflows (Figure 3, page 3).

Figure 3: NEBNext Ultra II FS DNA produces higher yields of PCR-free libraries

Figure 4: NEBNext Ultra II FS DNA provides uniform GC coverage with human DNA over a broad range of input amounts



Figure 5: NEBNext Ultra II FS DNA provides uniform GC coverage for microbial DNA over a broad range of GC composition

Figure 6: NEBNext Ultra II FS DNA libraries show reduced markers of oxidative damage compared to libraries produced by mechanical shearing

Ease of Use

Robustness of DNA Fragmentation

Consistent and reliable fragmentation is critical for a new method to be adopted. We optimized this new fragmentation system to be insensitive to variables such as input amounts, GC content, and DNA buffer conditions. In practice, these details are often unknown for a sample, requiring clean up and quantification prior to traditional enzymatic DNA fragmentation methods. Even when all of the variables are known, traditional enzymatic methods require different fragmentation parameters for each type of sample and DNA input amount. This new fragmentation system addresses all of these issues by requiring just a single-fragmentation protocol for the full range of input amounts (100 pg – 0.5 μg) (Figure 7, page 5) and for the full range of GC content (Figure 5). Also, input DNA can be in water, Tris, 0.1X TE or 1X TE (Figure 8, page 5). Fragmentation using the new system is time dependent, and final library sizes ranging from 100 bp – 1 kb can be generated by simply changing the fragmentation time.

Figure 7: NEBNext Ultra II FS DNA provides consistent fragmentation regardless of input amount

Figure 8: NEBNext Ultra II FS DNA provides consistent fragmentation of DNA in water, Tris or TE

Conclusion

The continued expansion of the use of next generation sequencing depends in significant part on overcoming the limitations and bottlenecks associated with high-quality library preparation, including the initial DNA fragmentation step. While acoustic shearing has for some time been the method of choice for NGS, limitations in terms of instrumentation, throughput and sample damage necessitate sourcing an alternative solution for many uses. This new method for enzymatic DNA fragmentation and library preparation addresses these issues, further streamlines the process and improves the quality of NGS libraries. The broadening of the input amount range to as low as 100 picograms enables access to high-quality sequencing of samples not achievable by previous methods, and the reliability and ease of use of the method not only allows automation, but also successful adoption by users with a wide range of laboratory skills.
